Dec 28, 2007

Get IIS sites and virtual directories with .NET / C# / Directory Services

       public List GetSites(string serverName)
       {
            List Nodes = new List();
            CustomTreeNode tnResult = new CustomTreeNode();
            try
            {
                DirectoryEntry w3svc = new DirectoryEntry("IIS://" + serverName + "/w3svc");
                foreach (DirectoryEntry entry in w3svc.Children)
                {
                   if (entry.SchemaClassName == "IIsWebServer")
                   {
                        CustomTreeNode Site = new CustomTreeNode(entry.Properties["ServerComment"].Value.ToString());
                        this.ServerLoadStart(entry.Properties["ServerComment"].Value.ToString());
/>                        Site.CurrentEntry = entry;
                        Site.ImageIndex = 1;
                        Site.SelectedImageIndex = 1;
                        Site = GetVirtualDirectories(entry, Site);
                        Site.ImageIndex = 0;
                        Site.SelectedImageIndex = 0;
                        Nodes.Add(Site);
                   }
                }
            }
            catch (Exception ex)
            {
                string msg = ex.Message;
            }
            return Nodes;
       }
       private CustomTreeNode GetVirtualDirectories(DirectoryEntry site, CustomTreeNode Parent)
       {
            string VirDirSchemaName = "IIsWebVirtualDir";
            DirectoryEntry folderRoot = site.Children.Find("Root", VirDirSchemaName);
            foreach (DirectoryEntry deChild in folderRoot.Children)
            {
                CustomTreeNode tnFolder = new CustomTreeNode(deChild.Name);
                this.VirtualDirectoryStart(deChild.Name);
                tnFolder.ImageIndex = 0;
                tnFolder.SelectedImageIndex = 0;
                tnFolder.CurrentEntry = deChild;
                tnFolder.ImageIndex = 1;
                tnFolder.SelectedImageIndex = 1;
                Parent.Nodes.Add(tnFolder);
            }
            return Parent;
       }

Here is the result I get after few more hours of work:


Aug 28, 2007

The silent catch

Another of my interesting phrases (or at least I don't know if someboddy used this phrase). What is silent catch?

Silent catch is a term I use for try .. catch block, where the catch does nothing or at least you don't see it to be doing anything.

The first example:
try
{
some unsafe code here ...
}
catch {}

Another example:
try
{
some unsafe code here ...
}
catch (Exception ex)
{
hide something (for example grid or some other control) ...
return;
}

The second example is as bad as the first. It will be underlined by the Microsoft Visual Studio code editor to warn you that the ex object isn't used anywhere within the body of the catch statement.

Today I spent about two hours to investigate why a page doesn't display
one Grid. It appeared to be beried deep inside the system (I mean it was in an ascx control). The problem appeared to be missing view in the database. Unfortunatelly after I couldn't see the exception I was forced to start from the web user interface, first I checked the settings in the application to see if it is not forbidden or something, then I started to debug, to see where this part of the page comes from. After I found it, I needed to see what's going on in the control. So it took me two hours to trace the problem. What if there were an exception with stack trace? 15 minutes of work would have been enough for me to see that the view is missing.

So:
"Try to avoid silent catch statements as they may cost you a lot of efforts to find the problem later (even if you wrote the code on your own)."

Aug 23, 2007

Settings, they are supposed to help ?!?

Yesterday I had a tricky problem. I client of our company complained he can't upload files on our system. I started troubleshooting the problem. Each time I clicked the "Continue" button exception was thrown as if an assembly can not be found. It was pain in the neck. The assembly was something like "System.Web.UI.MobileControls.Adapters" (I can't remember the exact name now but it doesn't matter as we didn't use that assembly at all). I asked a collegue of mine for help (thanks Vesko!). The problem was in Machine.config file so we decided to back it up and comment that provider to see what will happen. It threw an exception, but this time more reasonable. It said there is no disk space. I logged again onto the server to free some more space
and gues what? There were 60GB of free disk space! I started to think where the problem might be and tried to find solution in Google. It finally appeared that the problem is a setting within the OS. Short explanation below:
Windows 2003 Server uses NTFS file system. This file system is capable of maintaining disk quotas for each user. In other words - the administrator may define how much disk space each user can use. It was set to 1 GB for the user, running the service responsible for the upload. So I set it to 3 GB, tested to see if it works and it worked. Then I left the server and asked the administrator to decide how much disk space will be available to the user running the process.

After this space is used again I will know what to do ;).

So I learned very useful lesson - first check the settings and then try to debug or touch the code. In most cases if the code worked before and you know nothing has changed - this means that some resources available to the application before aren't available now OR someboddy changed some setting which was important for your code to run smoothly.

Aug 9, 2007

Surface Fixing



What is surface fixing?


Surface fixing is a phrase I use for a fix, which is implemented in a layer above the layer where it occurs. If we imagine the standart 3-tier architecture and we have a bug in the Data Access Layer, surface fix will be to implement the fix in the Business layer or the Presentation Layer. It is common for junior developers or companies where the things should happen in a matter of hours or days (companies with short deadlines).



Example of a surface fixing:





Let's say we have a page for registering users (Presentation Layer). On user registration this page creates the User object (Business Layer). Sets its properties as necessary, and calls it's Save() method. The Save() method creates

an instance of the UserDAL object (Data Access Layer) and decides whether the task is to create new user or update existing one. Let's say we will create new user. The User Business Object -> Save() method will probably call something like : UserDAL -> InsertUser(long UserID, string UserLogon ....);

Now let's say that the Data Access Layer doesn't escape the single apostrophe in the UserLogonID. Passing parameter as O'Conner or something like this causes exceptions. The question is where should this be fixed?

I see most of you answering : "In the Data Acess Layer offcourse!". That's the best place but if you are working on a small project.

Now ask yourself what will happen if we fix this in a big enterprise system with hundreds of modules / pages referring to that particular routine? After all the other modules / pages are working they will stop working or at least stop working correctly. With other words - your fix will require the whole system to be redeveloped. And what's worse - the QA team will have a lot of work. They will love you for sure :). And to make the things even worse we will imagine that we are near the deadline (which is almost sure after we are testing already). In such cases the Surface Fixing may help.

Below I am giving the advantages and disadvantages of the Surface Fixing.

Advantages:

  • Your fix will not broke anything in the existing modules
  • The fix will only be tested, not the modules which may be affected
  • Ideal to use near deadlines

  • Disadvantages:

  • The fix isn't applied at the right place
  • Conflicts may appear in the future with modules which are working correctly
  • Against the official software development standarts


  • When to use this approach ?

  • When we are developing module in a big system with lot's of other modules which depend on the bug
  • When we are near deadline
  • When we are sure that there will be new version.


  • Conclusion:

    This approach is perfect to fix some bugs in the current version, but consideration to completely fix it in the next versions should be made. It simply is not right to use this approach as a regular fixing guidance. In the software development and the 3 or more tier models the above layes should only see the previous and depend on it. And what's more important - the above layer should get the data as expected.

    Jul 8, 2007

    New company - new luck :)

    Yep, only in few hours I will be on my new desk in my new company :). I am very excitet about this. The new company is Vizibility and it is developing web modules. At first glance it seemed very very interesting with all the young people there. They were very hospitable on the interview and managed to earn my complete confidence. It seems that I did that too. After I met their requirements they met mine too.

    So it is a big day today :). Wish me luck
    !

    Jun 30, 2007

    Skype API (Skype4COM) + Google MAPS API = ? [3]

    As a part of my Google Maps and Skype API I wanted to add custom icons to represent different objects on the map (currently I made it for the bus stations).

    The picture bellow is the result :



    It was again easy - we simply create GIcon object. Then we assign the URL of the image to be used, size of the icon and point, where the info window will appear :


    Code


    icon = new GIcon();
    icon.image = 'BusFine.gif';
    icon.iconSize = new GSize(39, 60);
    icon.iconAnchor = new GPoint(5, 34);
    icon.infoWindowAnchor = new GPoint(5, 2);




    Then we only need to add this object as a second parameter in the GMarker object constructor.



    Code


    // point is a GPoint object, representing the location the marker
    should be
    // displayed.
    marker = new GMarker(point, icon);



    Note : Some browsers may need some more settings in order to display the custom icon correctly, the example above is for IE.

    Jun 18, 2007

    Skype API (Skype4COM) + Google MAPS API = ? [2]

    The last few days I played a bit more with this little thing and made it a bit more stable.  First of all there were some strange silver rectangles in the map (which I suspect is becouse I use IE) another struggle was to force the map not to resize (pretty strange, huh?). I solved both issues at once by adding overflow="hidden"  style attribute to the div, containing the map. It is quite strange.  I also added the stnadard map types controls (Map, Satellite and Hybrid), that wasn't hard but took a lot of search in the net, I had the feeling that I need to define my layer, I don't know why but in the end I understood I only need to call : map.addControl(new GMapTypeControl()); it simply cannot be more easier. After the lesson with
    the map type control it was a line of code to add the large zoom control : map.addControl(new GLargeMapControl()); the guys from Google really rule the world :). They made it as easy as possible. After I got the map types and the zoom control I wanted some challenge. I decided to add a tabbed info window, only for the test the first tab I wanted was : "User Info" and I wanted the second to be "Date of birth" that was again as easy as possible ! Nice work, googlers !

    Finally here is what I have so far :


    I will try to add custom layers and lines these days only to test how it works and is it hard to implement.

    Jun 10, 2007

    What happened with the Data mining?

    Well, I simply stopped the project for a while, since I need to see the legal aspects of it. I am not quite sure if it is legal to simply take some catalogs from somewhere, reformat them and use them as your own. I think I can do such thing with some free public catalogs, but I will not act, until I have the written permission from the authors. Here are two screenshots of the spider in action :

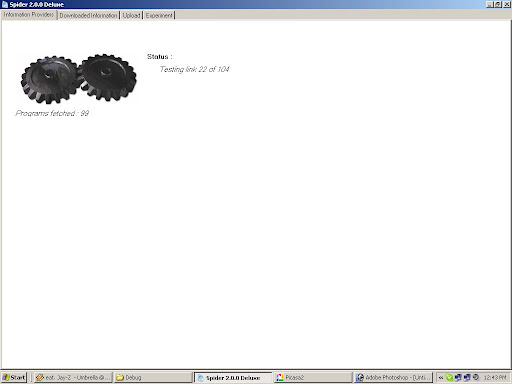

    The above screenshot is when the spider is gathering data. It displays how much data is gathered and what the spider is doing in the given moment.

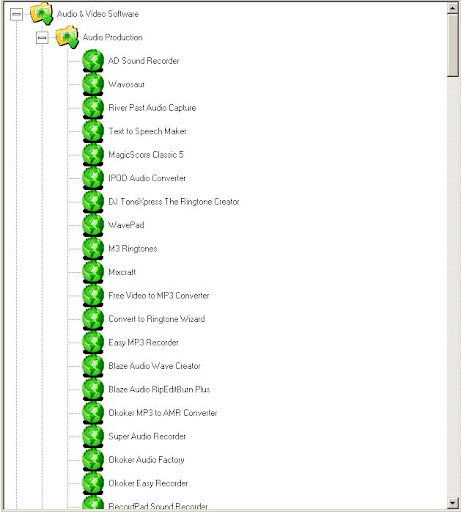

    The above screenshot displays the results of the crawl as a treeview. It uses MS Access database to store the data (since it is a small project).

    Technologies used for the spider :
    />.NET 1.1 (Windows Forms), MS Access, Internet Explorer Automation COM Libraries (AxWebBrowser, ShDocVW COM mshtml).

    Training your collegues from the beginning

    A collegue of mine recently wrote very interesting post about the relations at work (here). He is currently project manager but he was also software developer for years. So he knows a lot about those specific problems at work. I think I also can give my opinion on the subject as a intermediate software developer.

    Some problems:

    First of all - it is really hard to refocus after being taken away from your work once. That's true. It is also true that some time a single line of code somewhere deep in the project once found may be lost easilly, which means more hours of work. I think that in our work we should first respect each other. So if I respect my collegues I will not ask them to come to my desk each five minutes. I will think on
    what exactly do I want to ask them, after they come and answer to me I will think what else can be difficult for me and ask that collegue who is already on my desk. It is really disturbing someone to ask you to come each five minutes to help him / her and to see that this person doesn't care what are you talking about. Or to hear - "I can't think now". Every time I hear this I know I will be asked to come back to that particular desk in not much than five minutes. So trying to extract knowledge and routine from other people's mistakes I have the following rule - if I can't think and see that I am absent-minded - I simply take few minutes and then I ask my collegue to help me. Also when I hear : "I'm not here." - I simply ask that collegue to have few minutes break and then ask me to help him/her. So rule number one is to estimate why is your collegue facing that particullar obstacle - is it so hard or he / she simply needs few minutes of break so he/she can focus. It doesn't make any sense to bounce between your desk and that of your collegue if he isn't there, right?
    On the other hand - ignoring any team member leads to disballance in the team. We should be as responsive as possible in order to push our projects ahead. But the trick is to make your collegue deal with the difficulty or at least remember the solution so he can use it next time. That is what actually upgrades us as software developers.
    Another very frequent problem is the psychological barrier. I had collegues who simply deny to try deal with the problem. For example I've heard : "I don't know JavaScript". And he/she simply stops his / her work when it requires JavaScript. In such cases I am trying to convince that buddy that this is very efficent and useful technology to point some advantages using it and to make it look easier. I am saying : "See, it's not that hard, you simply use this property and everything you needed is done."
    I believe when you go to another desk to help someone you should not only think about the problem itself but the condition the other party is in. So being helpful developer requires some kind of psychological knowledge.

    Senior software developers against juniors

    That often becomes a great problem. Some of the senior software developers simply can't teach the youngers on how to deal with their work. In most cases it happens becouse the seniors are too self-reliant. They often believe their work is ten times more important. In most cases it is true. But investing in future seniors is also very important. If you train junior developer well - he will become senior too and will help you with your work.

    Isolation at work

    There are people who doesn't seem to be a part of the team. At first the headphones- I think it is good to put headphones on your head so you can isolate from the noise for example. It is not right, however, to make them a wall between you and the team. You should be open to any team member. I also have headphones at work. They help me a lot to isolate myself, but I am also trying to watch if somebody is comming to my desk and I take them off in the moment I see him/her. If he/she is few meters away and see that you are taking off your headphones he understands that you are ready to help and what is even more - that you will be glad to help. It is a simple psychological stimulation. We should spend much time in thinking about those little stimulations which can improve the relations at work a lot.

    Other developers don't need headphones to build a wall between them and the team (or at least the younger part of the team). I think those should be punished somehow. The should also be responsive and help their collegues. I've worked with developers who answer to your question with half word, making you feel the most stupid developer on the earth. They say : "How can you missed this, it's so easy, I can't believe you ask me for this." Once you hear this answer you will not ask that developer for anything. What's even worse - you won't want to see him/her outside.

    Jun 9, 2007

    When to decouple?

    It is quite modern nowadays to decouple things. One project in USA to deal one business requirement, another in Pakistan to deal with some other business requirement and one more in Romania and one more in Bulgaria...

    Is it so good indeed to decouple single project into Web services and make them talk each other?

    Well I think as most things in this life decoupling has its advantages and disadvantages.

    I nearly lost my mental health becouse of an xslt to transform an xml document to another xml document so it can be sent from a system we are developing to a system, which provides document printing. Does it worth to write 14, 000 lines of xslt code only to print a document? Well, depends on the viewpoint. First of all decoupling minimizes
    the development efforts in the corporation, by splitting it into development efforts in two or more corporations. That's good #1. Second - it can save years of gathering data (a good example are the credit providers in the USA, they have information you can hardly obtain other way but using their (paid) services). That's good #2.
    The support is done by the other party, you don't need to care about it. That's good #3.
    The other good thing is that there's always someone else to blame for something not working ;). That's joke ofcourse. The truth is that if your code doesn't work - you'll lose your clients. That's the simple truth about any business.

    Now let's turn our attention on the disadvantages the SOA and decoupling may bring to you. The first and one of the biggest disadvantages is that YOU ARE DEPENDING ON SOMEONE ELSE. Any technical problem on their side will affect your side and what's worse - it will also affect your customers. And what is even worse- it will (in most cases) harm your reputation, not the reputation of the party that made the mistake (so be careful about what are you writing in the error messages the customer will see on other party fail;). Yeah, I mean it. You shouldn't accept the other party guilt as yours, if they could delivered it to you, you would have delivered it to the client, right? So instead of writing :
    "Error, we have a problem"
    write :
    "Error, our partner have a problem."
    Other big disadvantage is that while developing your side code you are facing a black box. You don't know what's happening in this black box and why it is responding in the way it does. You can only trust the documentation you may have. But is everything in it? No, I don't think so. Especially for complex services some small things are always missing and you need to either figure them out (which costs a lot of money for pills) or contact the other party and wait so they can clear the problem and document it.
    I remember once I faced great problems with a web service which simply refuses to return any response. Only some simple empty xml document. Finally we figured out with my colleagues it needed two spaces in the begining of the document. I remember I wanted to swim from Bulgaria to USA to ask the guys who developed this thing to show me how would the request the document. The development dificulties, however are not a great obstacle, becouse once passed, they won't worry you anymore. But there is one more disadvantage which will remain - the transportation of the data. In order to get response from a third party service you need to send it request (this request is transported over the Internet), the service needs time to process it and then it returns you the request (which is also transported over the Internet). Then you may do something with this request and send response to the client (which is also done over the Internet). So instead one response / request pairs, you will have two. That's 100% bandwidth growth. It isn't something you can live with.

    So the question remains. When should we use decoupling and SOA (I mean services, provided by third parties)?

    I think it is a good choice to use third party services when you need some sort of information which is hard to obtain or may require too much time and which someone already have (credit reports in USA are good example, I think). You also may consider using SOA for services which will require a lot of time for development and which are already developed by third parties. For simple services - I think it is better to develope them on your own, so you don't waste too much bandwidth and depend on other parties.

    Skype API (Skype4COM) + Google MAPS API = ?

    I've played a bit last few days. I was interested in mixing the Skype4COM library (Official Skype API) with the Google Maps API (Google's Geocoding Service). It was quite tricky to make them both work properly, but finally I got some "results". Screenshots of the results will be published in this post the next few days, since I have some difficulties using the blogger upload utility (probably it is becouse my ISP, not blogger itself).









    And this is what I have done with Skype (Skype4COM) and Google Maps Api. I am thinking on how to incorporate this program into skype (probably as plugin or something) so it can be easier to use.

    >

    Mar 13, 2007

    Another data mining approach [2nd Edition]

    I will edit this a bit. I'll split into few steps. Here, at blogger there is no suitable way to add code so I will probably decide to give the code as downloadable and write only the explanations with short code passages attached.

    Let's start with step 1 of our data miner. The first step is to set the things we will need. As I said we will need a WebBrowser control which will load the pages we need. Second - we will need the mshtml and ShDocVw libraries. They contain handy functions and structures we will need to use. Add those to your project and place a WebBrowser control onto the page.

    We are now ready to start. We will first need a suitable way to get the html document from string (the URL of the document) and some times we
    will need to say to our application :

    "Hey, click on this link, wait for the document to fully load and give it to me, so I can process it!". This is a bit trickier than the first requirement. Getting the document from string is easier - we simply call the WebBrowser.Navigate() routine, attach some delegates and do some routine work to check if the document is ready or the OnDocumentComplete hit frame again.

    I organized those two simple but important routines into class, called DomBase. The class constructor receives two parameters the first is the WebBrowser control which will be used as navigator and the second is a label which will report the current status (in case you want to hide the WebBrowser control and perform silent navigation). Here is the signature of the DomBase ctor :

    public DOMBase(AxWebBrowser wb, Label Status)

    In the constructor of the class I am simply assigning the WebBrowserControl and the Label to a private variables I have declared previously so I can access them from the class. The more important is the GetDocument method, which is actually setting the delegates needed and is navigating to the requested document. After the document is fully loaded - the routine returns the HTMLDocument instance which is the document loaded inside the WebBrowser Control. The method is public so it can be accessed from everywhere and receives only a string, containing the URL of the document to get. Here is the signature of the GetDocument routine :

    public HTMLDocument GetDocument(string s_Url)

    There are few interesting things inside the GetDocument body. The navigation I won't discuss since it is trivial. The next thing is to assign the DocumentComplete delegate so routine defined by us to receive the event. I have forgotten to mention that my global WebBrowser control is named h_wb. So here is how do I assign the OnDocumentComplete event to my routine (this is inside the GetDocument routine) :

    this.h_wb.DocumentComplete += new AxSHDocVw.DWebBrowserEvents2_DocumentCompleteEventHandler(h_wb_DocumentComplete);

    (longer than the page but you will have it soon in a separate file so you can see it better).

    [to be continued].

    Another data mining approach

    Few weeks ago I urgently needed some tool to gather data for me from a sites. It wasn't easy to find some good tool for crawling sites and get the data from them. Since I love experiments I decided to develop my own spider. I needed it to be human like program which can get and analyze document from a given string. After the document is loaded once - the application should find a link and click on it and then - wait the other page to be loaded and do someting like that. I used the IE automation approach, as it seemed easier then. But it was a lot of pain until all the functionalities were implemented indeed. I will pass some code and explanations later, for now you can search the http://www.codeproject.com and http://msdn2.microsoft.com/en-us/default.aspx
    as they seemed to be a good starting point. When I go home I will paste some code among with explanations.
